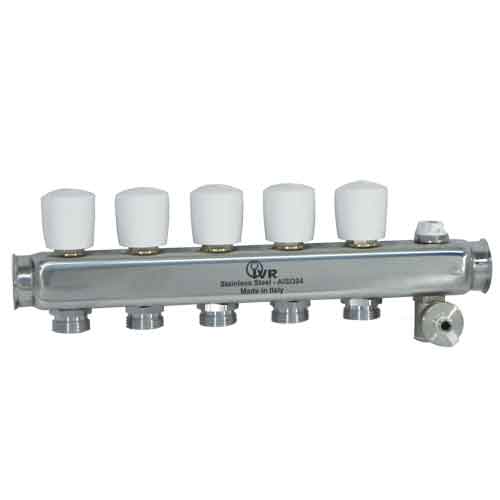

Collettore in acciaio inox AISI 304 1" - 1"1/4 - Connessioni 3/4" EK - Interasse: 50 mm. Collettore di ritorno con valvole manuali con volantini, valvola sfogo aria e rubinetto di carico/scarico acqua
| Codice | Misura | Vie | L(mm) | H(mm) | Attacchi |  |
|---|---|---|---|---|---|---|
| 187510502 | 1" | 2 | 175 | 61 | 3/4" EK | 1/6 |
| 187510503 | 1" | 3 | 225 | 61 | 3/4" EK | 1/4 |
| 187510504 | 1" | 4 | 275 | 61 | 3/4" EK | 1/4 |
| 187510505 | 1" | 5 | 325 | 61 | 3/4" EK | 1/4 |
| 187510506 | 1" | 6 | 375 | 61 | 3/4" EK | 1/6 |
| 187510507 | 1" | 7 | 425 | 61 | 3/4" EK | 1/6 |
| 187510508 | 1" | 8 | 475 | 61 | 3/4" EK | 1/6 |
| 187510509 | 1" | 9 | 525 | 61 | 3/4" EK | 1/6 |
| 187510510 | 1" | 10 | 575 | 61 | 3/4" EK | 1/6 |
| 187510511 | 1" | 11 | 625 | 61 | 3/4" EK | 1/6 |
| 187510512 | 1" | 12 | 675 | 61 | 3/4" EK | 1/6 |
| 187512506 | 1"1/4 | 6 | 375 | 66 | 3/4" EK | 1 |
| 187512507 | 1"1/4 | 7 | 425 | 66 | 3/4" EK | 1 |
| 187512508 | 1"1/4 | 8 | 475 | 66 | 3/4" EK | 1 |
| 187512509 | 1"1/4 | 9 | 525 | 66 | 3/4" EK | 1 |
| 187512510 | 1"1/4 | 10 | 575 | 66 | 3/4" EK | 1 |
| 187512511 | 1"1/4 | 11 | 625 | 66 | 3/4" EK | 1 |
| 187512512 | 1"1/4 | 12 | 675 | 66 | 3/4" EK | 1 |
